Silver Onlay Brass Strip is a kind of new functional composite material. It is based on the copper or copper alloy. Precious metal, silver or silver alloy are cladded on the base metal as an inlay or overlay through special bonding process. Silver Clad Metal Material is suitable for continuous automatically manufacture. It does not need other manufacture process, such as welding or soldering after its formation.

Send Inquiry    PDF DownLoad

Product Description

Silver Onlay Brass Strip

Clad metal manufacturing, more than 10 years manufacture experience, attained ISO9001, work on OEM and ODM projects..



1.   Introduction of the Silver onlay brass strips


Silver clad strip AgCu is a kind of new functional composite material. It is based on the copper or copper alloy. Precious metal, silver or silver alloy are cladded on the base metal as an inlay or overlay through special bonding process.

Silver Clad Metal Material is suitable for continuous automatically manufacture. It does not need other manufacture process, such as welding or soldering after its formation.

It is saving precious metal, keeping low cost and consistency of social development.


2.   Application of Silver onlay brass strips


Silver clad strip mainly used for all sorts of electrical component production, such as, micro motors, electrical brush, commutator, jiggle plug/socket, relay, connector, tuner, etc.

It is also suitable for continuous automatically manufacture.

Silver Onlay Brass Strip application


3.   Main Materials for Silver onlay brass strips


Face material : Ag,AgNi,AgCdO,AgSnO2, AgSnO2In2O3

Base material: Cu, brass, Phosphor copper, Beryllium copper


4.   Specification of Silver onlay brass strips


Dimensions can be customized

Total Width

Silver Width

Total Thickness

Silver Thickness

Total Width Tolerance

Total Thickness Tolerance

1.5-60

1.5-60

0.1-0.5

0.05-0.3

±0.5

±0.03

1.5-60

1.5-60

0.6-1.5

0.05-1.0

±0.1

±0.05

1.5-60

1.5-60

1.6-3.0

0.05-1.5

±0.2

±0.08



5.   Product types for Silver onlay brass strips


One layer Onlay, two layers overlay, Multi-layer… …

Silver Onlay Brass Strip



6.   Manufacture plant of Silver onlay brassstrips


Germany Hi-precision Roller Machine; Hi-precision Vertical Cutting Machine; Slotting Machine; High-precision punch machine.


7.   Tests and inspection for Silver onlay brass strips


Test instrument : Metallographic Microscope; Digital Light Processor; Strength Tester; Hardness Tester.

Silver Onlay Brass Strip factory

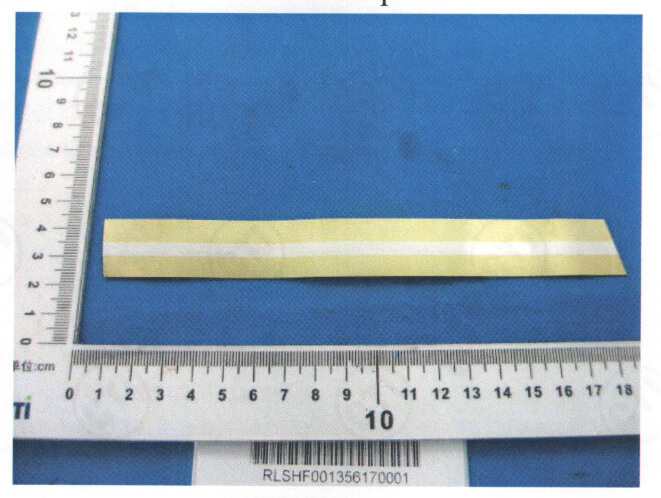

Material composition test data

Silver Onlay Brass Strip test


8.   Certificates


Silver Onlay Brass Strip certificate


9. Packing and shipping for Silver onlay brass strips


Packing:

 First put into Vacuum sealed plastic film, then Fill with sponge into the hard cardboard carton box, each box won’t excess the weight 30kg..



Shipping:

We will choose the best way according to customer’s requests.
1. By Air, to the indicated airport.

2. By Express (FedEx, UPS, DHL, TNT,EMS), to the indicated address.
2. By Sea, to the indicated sea port.

Silver Onlay Brass Strip delivery



10.Questions and Answers


a1. Do you have ISO certificate?

Yes, we obtained ISO9001


a2. How long is your delivery time for silver onlay strip?

20-25 days depend on the raw material condition


a3. Do you make parts according to our design?

 Yes, we always do as per customers drawings or Technical documents


a4. How do you control quality?

We produce strictly according to customer’s drawings and requests, here are strict control plan in every process, full check of each parts, strive to provide customer 100% quality products, ROHS/SGS test report, material certificate are available.


a5. Do you provide sample? Free or charge?

Yes, if the sample in stock available, free of charge, if not, need to charge some mfg cost.
