C17200 Beryllium Copper Strip is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys.

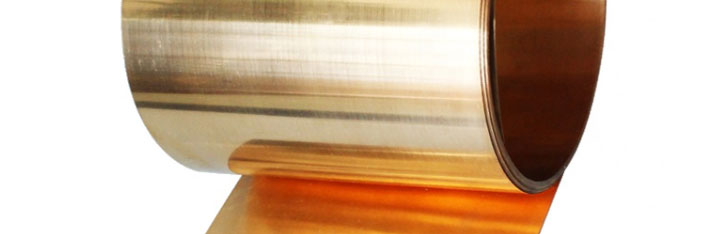

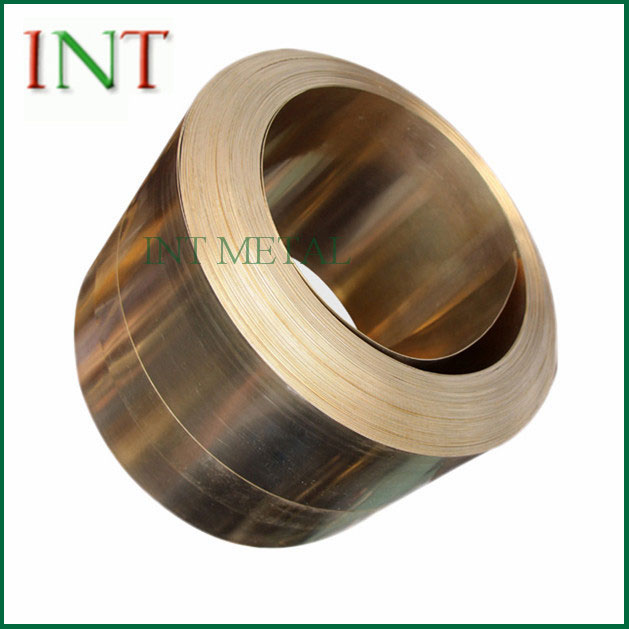

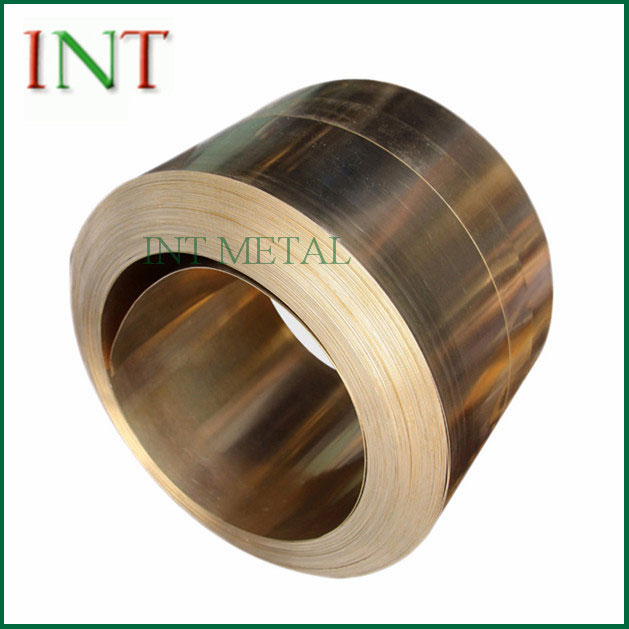

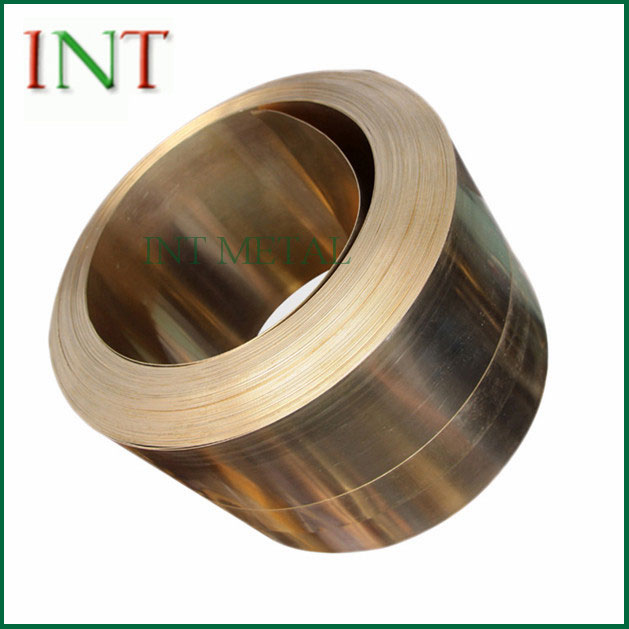

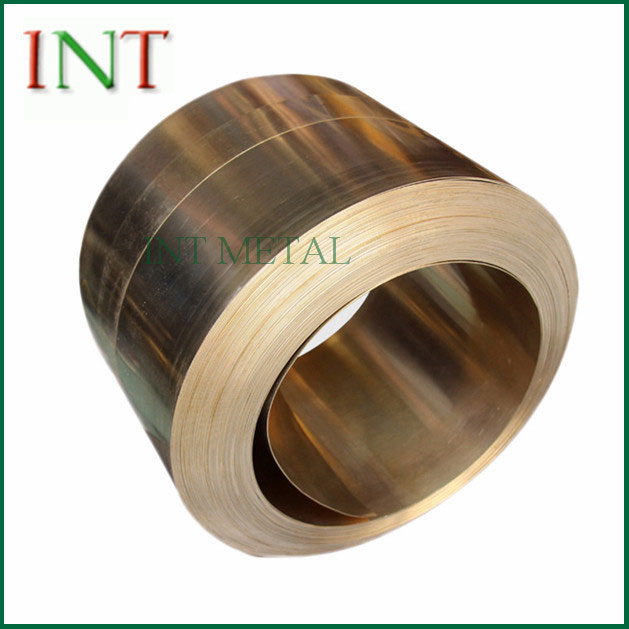

C17200 Beryllium Copper Strip
Beryllium copper factory, more than 10 years manufacture experience, attained ISO9001, work on OEM and ODM projects..
1. Introduction of the C17200 Beryllium copper strip
Beryllium bronze and spring copper is acopperalloywith 0.5—3%berylliumand sometimes with other alloying elements. Beryllium copper combines high strength with non-magnetic and non-sparking qualities. It has excellentmetalworking, forming and machining qualities. It has many specialized applications in tools for hazardous environments, musical instruments, precision measurement devices, bullets, and aerospace. Beryllium-containing alloys create an inhalation hazard during manufacturing due to their toxic properties.
C17200 (CDA 172/ Cube2) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys.
2. Grade and temper for C17200 Beryllium copper Strip
Grade: C17200, C172, CDA172, QBe2, CuBe2, CB101
Temper: O, 1/4H, 1/2H, H, EH,SH
3. Chemical composition of C17200 Beryllium copper strip
Be:
1.9-2.15%
Co+Ni: 0.20% Min.
Co+Ni+Fe: 0.60% Max.
Cu: Balance
Note: Copper plus additions equal 99.5%
minimum.
4. Characteristic of C17200 Beryllium copper strip
• High Strength
• Good Formability
• Good corrosion resistance
• Easy welding and soldering
• Fatigue Resistant
Physical properties
|
Density(g/cm3) |
8.26 |
|
Electrical conductivity{IACS%(20℃)} |
25 |
|
Modulus of elasticity(KN/mm2) |
127 |
|
Thermal conductivity{W/(m*K)} |
83.7-130 |
|
Coefficient of thermal expansion (10-6/℃ 20/℃~100/℃) |
17.8 |
5. Mechanical properties for C17200 Beryllium copper strip
|
Temper |
Tensile Strength |
Yield Stength |
Elongation A50 |
Hardness |
Bendability |
Bendability |
|
(Rm,Mpa) |
Rp0.2,Mpa |
% |
HV |
GW |
BW |
|
|
0 |
410-540 |
- |
≥35 |
90-160 |
0 |
0 |
|
1/4H |
510-620 |
- |
≥10 |
145-220 |
2 |
1 |
|
1/2H |
590-695 |
- |
≥5 |
180-240 |
3 |
2 |
|
H |
685-835 |
- |
≥2 |
210-270 |
6 |
2 |
6. Application of C17200 Beryllium copper strip
C17200 beryllium copper is used for all kinds of micro motor brushes, switches, relays, connectors, thermostat springs, and various springs that require high strength, high elasticity, high hardness, and high wear resistance etc.
7. Manufacture plant of C17200 Beryllium copper strip
8. Tests and inspection for C17200 Beryllium copper strip
Test instrument : Metallographic Microscope; Digital Light Processor; Strength Tester; Hardness Tester.
9. Mill certificate for C17200 Beryllium copper strip
10. Packing and shipping for C17200 Beryllium copper strip
Packing:
First wrapped by anti-rust paper, second wrapped by plastic film, then packed by wooden box or wooden pallet ..
Shipping:
We
will choose the best way according to customer’s requests.
1.
By Air, to the indicated airport.
2. By Express (FedEx, UPS, DHL, TNT,EMS), to the indicated address.
2. By Sea, to the indicated sea port.
11.Questions and Answers
a1. Do you have ISO certificate?
Yes, we obtained ISO9001
a2. How long is your delivery time forC17200 Beryllium copper strip?
If the master coil is available, 3-7 days do slitting will be ready , if not, will need 20-25 days for new production.
a3. Can you help us to choose suitable material?
Yes, we can recommend the most suitable material according to your application.
a4. How do you control quality?
We produce strictly according to customer’s drawings and requests, here are strict control plan in every process, full check of each parts, strive to provide customer 100% quality products, ROHS/SGS test report, material certificate are available.
a5. Do you provide sample? Free or charge?
Yes, if the sample in stock available, free of charge, if not, need to charge some mfg cost.
