AgSnO2 silver contacts are widely used in large capacity contactor, power relay, medium and small capacity of low voltage circuit breaker, and automobile electronics etc
AgSnO2 Silver Contacts
AgSnO2 Silver Contact factory, more than 12 years manufacture experience, attained ISO9001, work on OEM and ODM projects..
1. Introduction of AgSnO2 Silver Contacts
1. AgSnO2
is a nontoxic material, compared to AgCdO, and has very good and stable welding
resistance and arc erosion resistance.
2. It has better erosion resistance than AgCdO in the current range of 500 ~
3000 A, and shows better welding resistance than AgCdO and AgNi under lamp load
and capacitive load.
3. While under AC resistive load, the contact resistance of AgSnO2 is a little
higher than that of AgCdO, but it shows low and stable resistance at DC lamp /
motor loads (such as automobile relays).
4. Under DC condition, AgSnO2 has less material transfer compared to AgCdO.
5. Non-poisonous. It is a new and environment-friendly material used in contact

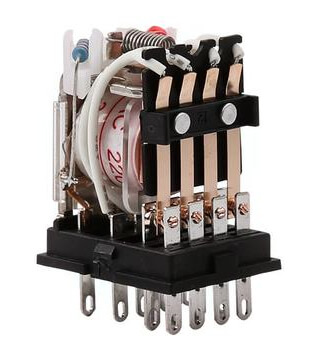

2. Application of AgSnO2 Silver Contacts

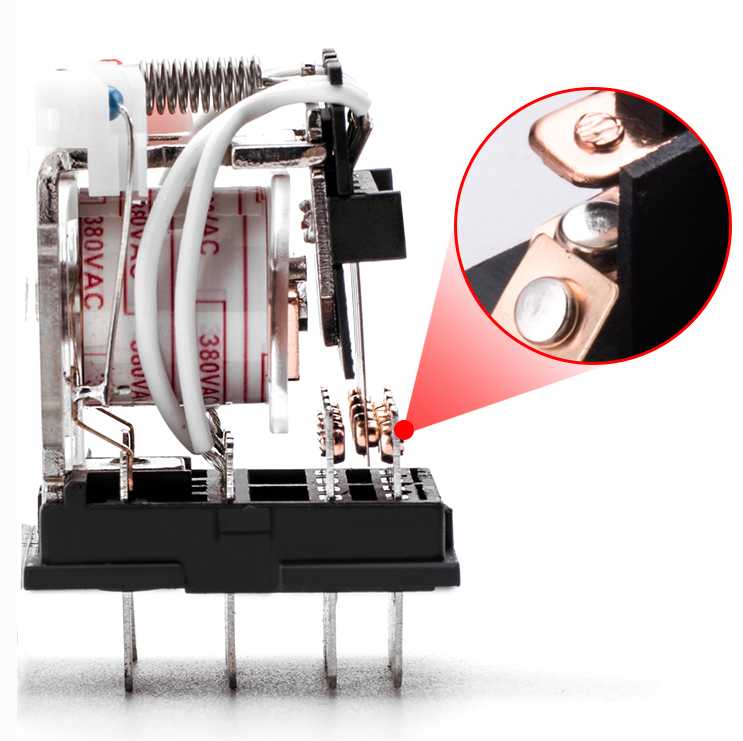

AgSnO2 electrical contacts are widely used in large capacity contactor, power relay, medium and small capacity of low voltage circuit breaker, and automobile electronics etc.
Ag(SnO2)10 is suitable for medium and small
current relay, Ag(SnO2)12 is suitable for medium- large current relay, Ag(SnO2)14
is suitable for high current relay and automotive relay
3. Main Materials for AgSnO2 Silver Contacts
Main face materials: AgSnO2 8, AgSnO2 10, AgSnO2 12, AgSnO2 15, AgSnO2 20
Main base materials : Cu, CuNi
|
Category |
Density g/cm3≥ |
Electrical conductivity .cm≤ |
Hardness soft HV≥ |
Tensile strength soft MPa≥ |
|
AgSnO2 92/8 |
10 |
2.08 |
57 |
225 |
|
AgSnO2 90/10 |
10 |
2.13 |
62 |
230 |
|
AgSnO2 88/12 |
9.9 |
2.22 |
67 |
235 |
|
AgSnO2 85/15 |
9.68~9.96 |
2. 56 |
95 |
250 |
|
AgSnO2 80/20 |
9.65～9.95 |
2.66 |
97 |
275 |
4.Specification of AgSnO2 Silver Contacts
Dimensions can be customized
| Item | Head Diameter D(mm) | Head Thickness T(mm) | Layer Thickness S(mm) | Shank Diameter d(mm) | Shank Length L(mm) | Sphere Radian R(mm) | Mold Ratio θ |
| Specification | 2.5 | 0.6-1 | 0.3-0.4 | 1.2-1.5 | 1-2 | 4-6 | 9 |
| 3 | 0.8-1.2 | 0.3-0.5 | 1.5 | 6-8 | |||
| 3.5 | 1.5-2.0 | 1-3 | |||||
| 4 | 1.0-1.5 | 2 | 8-10 | ||||
| 4.5 | 2.0-2.5 | ||||||
| 5 | 1.0-2.0 | 0.4-0.6 | 2.5 | 10-15 | |||
| 5.5 | 2.5-3.0 | ||||||
| 6 | 3 | 15-20 | |||||
| 6.5 | 1.2-2.0 | 0.5-0.7 | 3.0-3.5 | ||||
| 7 | 3.5 | 20-25 | |||||
| 8 | 4 | ||||||
| Tolerance | ±0.1 | ±0.05 | ±0.05 | ±0.05 | ±0.15 | ±0.2 | ±2 |
Head diameter marked with: D
Head thickness marked with: T
Shank diameter marked with: d
Shank length marked with: L
Head silver thickness marked with: S1
Shank silver thickness marked with: S2
Sphere radian marked with: R

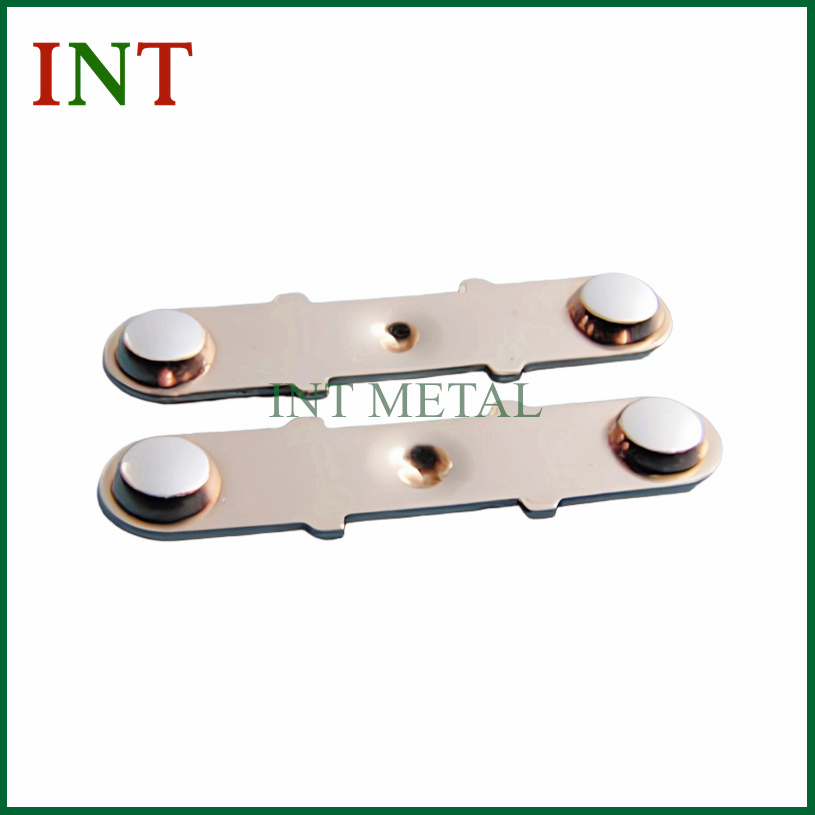

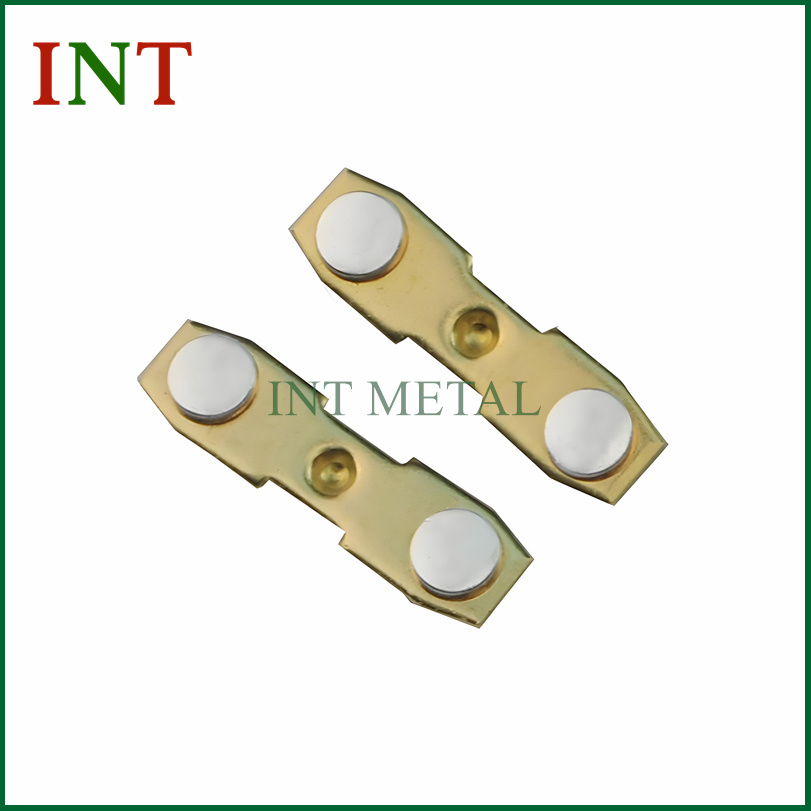

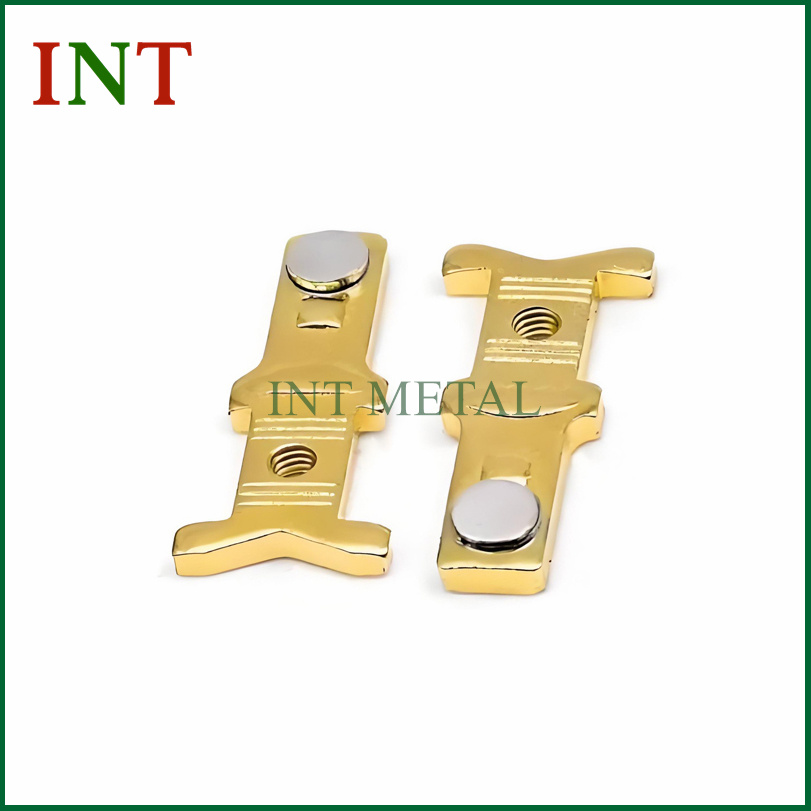

5. Product types for AgSnO2 Silver Contacts

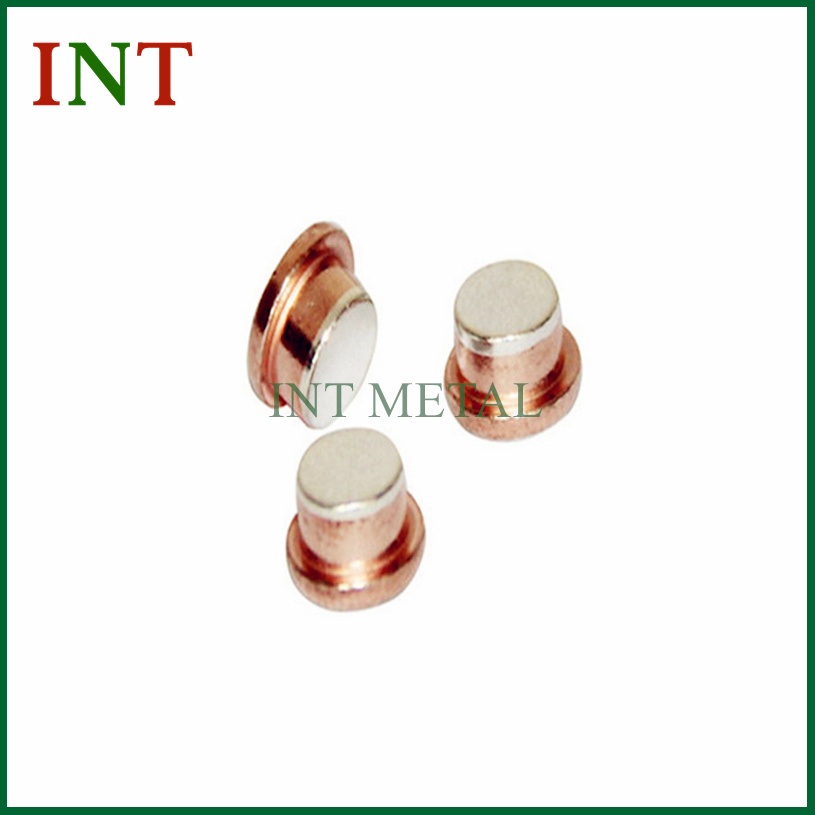

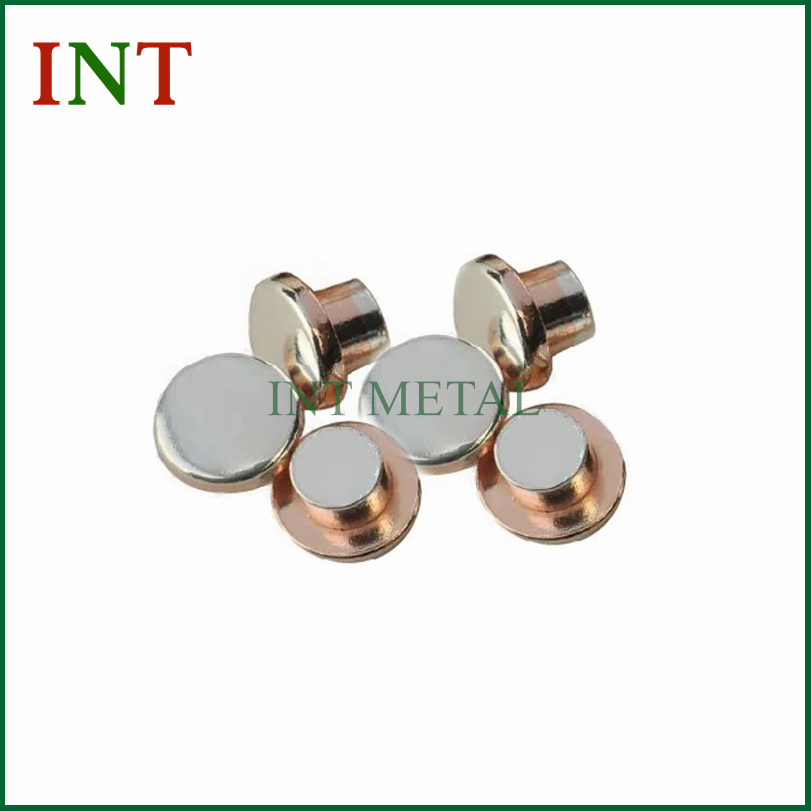

Round head rivets, Flat head rivets, Bimetal rivets, Tri-metal rivets and special type
6. Process of AgSnO2 Silver Contacts
7. Manufacture plant of AgSnO2 Silver Contacts
8. Quality control flow chart of AgSnO2 Silver Contacts
9. Packing and shipping for Silver tin oxide electrical contact AgSnO2 Silver Contacts
Packing:
First put 500-5000 pcs into small plastic bags or vacuum plastic bags, then in separated small carton box, at last Into hard cardboard box.
Shipping:
We
will choose the best way according to customer’s requests.
1.
By Air, . By Express (FedEx, UPS, DHL, TNT,EMS), to the indicated address.
2. By Sea, to the indicated sea port
10.FAQ
Q1. Can you help customers for designing products?
A1. We can help customers to design the best products to achieve both good function and costs saving according to their application.
Q2. Can you help us to choose suitable material?
A2. We can recommend the most suitable material according to your application.
Q3. What kind of electrical contact material you can provide?
A3. We can provide fine silver(Ag) , AgNi, AgCdO, AgSnO2, AgZnO, AgSnO2ln2O3, AgC , AgWC , AgW , CuW etc
Q4. Can you provide free samples?
A4. If we have the right or similar sizes in stock, we can send you for free.
Q5. How do you control quality?
A5. We produce strictly according to customer’s drawings and requests, here are strict control plan in every process, full check of each parts, strive to provide customer 100% quality products, ROHS/SGS test report, material certificate are available.
